Automatic Copper Wire Bunching Machine Single Diameter 0.08mm - 0.45mm Twist Equipment

Product Categories
Kunshan Fuchuan Electrical and Mechanical Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Automatic Copper Wire Bunching Machine Single Diameter 0.08mm - 0.45mm Twist Equipment

Color : sky blue

Take up bobbin : diameter 500mm

Fit copper wire : 0.08mm-0.45mm

Wire : bare copper wires, tinned wires, silver jacketed wires and enameled wires

Direction of lay : Free to left or right

Operation mode : Touch screen operation

Main Motor Power : 5.5KW

Wire Diameter : 0.08-0.45mm

Brand Name : Fuchuan

Model Number : FC-500B-8

Certification : CE

Place of Origin : China

MOQ : 1set

Price : negotiable

Supply Ability : 500 sets per month

Delivery Time : 45days

Packaging Details : with container

Max Speed : 3000rpm (6000 twist)

Tension Control : Touch screen + PLC

Application : Electrical, automobile wires

Pitch Range : 6.3-52.3mm, 24 zones

Stranding Area : 0.05-2.5mm2

Contact Now

Fuchuan Normal Copper Wire Bunching Machine with single diameter 0.08 to 0.45


Quick Details:

Apply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.

Characteristics:

Japan Technology, product in China
New arrival, mainly apply for stranding the electrical wire and automobile wire and other small section area conductor.
1.High rotation speed, max up to 2600rpm, is the 1.6 times than normal (1600rpm);
2.Use PLC, hysteresis clutch take-up device imported from German, tension sensor ensure the stable tension and high quality stranding wire, especially for high quality tight line.
3.Use carbon fiber bow, strong rigidity, uneasy-transformation, small shock, light weight, reduce air friction for high quality of conductors;
4.Use synchronous belt drive, just to replace the guide wheel to change the lay distance, easy to operate.
5.Use spindle to calculate meters, only 0.01% error for a certain wire&cable.
6.Use PLC automatically lubricate spindle bearing, avoid injecting too much or too little grease. Get rid of unnormal noise and worn, cost down for maintenance.

Specifications:

Equipment modelsFC-500BFC-650BFC-650CFC-800B
Twisting usageApply for twisting aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)0.08-0.450.15-1.040.12-0.520.38-1.70
Stranding section area (mm²)0.05-2.50.35-6.00.30-4.01.0-16
Core wire single wire dia(mm)0.5-1.50.5-3.00.5-2.01.0-4.0
Core wire stranding outer dia(mm)1.0-3.51.0-6.01.0-4.02.0-8.0
Pitch(mm)6.3-52.3(24classes)11.6-100(34classes)11.6-100(34classes)23-147(20classes)
Direction of layOptional for right or left
Outer dia*bore*outer widthOD500 ID56 H375OD630 ID56 H475

OD630 ID56 H475
OD630 ID127 H475

OD800 ID80 H600

Max rotating speed3000rpm(6000twist)2000rpm(4000twist)2400rpm(4800twist)1500rpm(3000twist)
Main motor power5.5KW7.5KW11KW15KW
Inverter power5.5KW7.5KW11KW15KW
Tension control methodTouch screen +PLC+ magnetic powder clutch, ensure the constant tension from empty to full bobbin
Magnetic powder clutch1.2kgf5kgf2.5kgf10kgf
Protection

automatically brake/stop 1)wire inside and outside is broken
2)the preset length is arrived

Brake modeElectromagnetic brake
Traversing methodRolling wire with ring drive units, winding pitch and breadth are adjustable
Operation modeTouch screen operation
Dimension(mm)2680L 1250W 1500H3300L 1550W 1800H3300L 1550w 1800H4600L 2000W 2000H

Other Information

FOB SHANGHAI
Payment

TT, L/C
Delivery

FOB Shanghai/Ningbo
Origin

China
Minimum Order

1 set
Package
with container

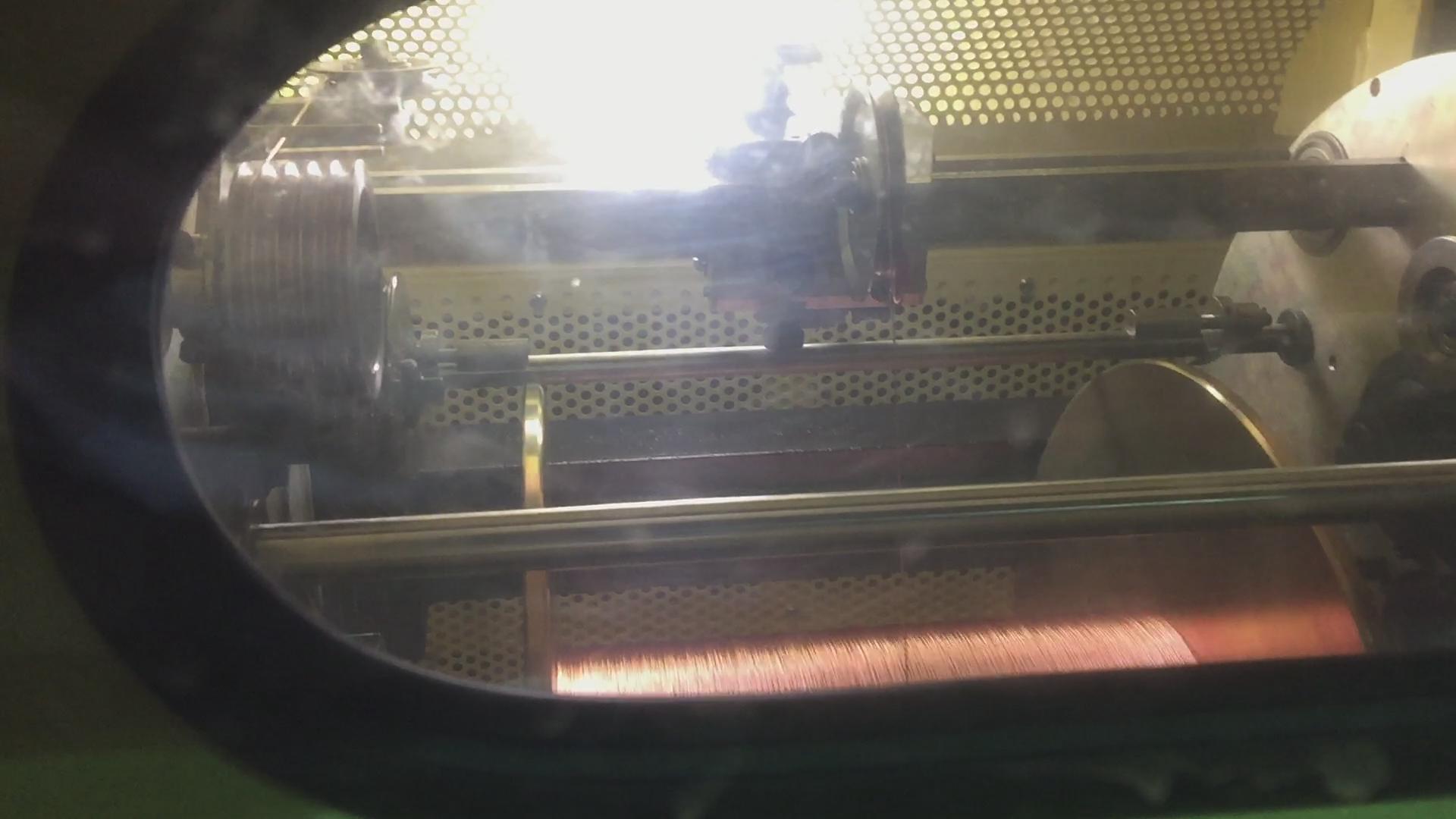

Automatic Copper Wire Bunching Machine Single Diameter 0.08mm - 0.45mm Twist Equipment
Automatic Copper Wire Bunching Machine Single Diameter 0.08mm - 0.45mm Twist Equipment
Automatic Copper Wire Bunching Machine Single Diameter 0.08mm - 0.45mm Twist Equipment
