Name: DC 3 phase Annealing Type PVC Extrusion Machine Extrude BV Building Wire
Brand: Fuchuan
Price: 76600 USD

Brand Name : Fuchuan

Model Number : FC-90+45

Certification : ISO9001:2008

Place of Origin : China JiangSu

MOQ : 1set

Price : USD76600

Payment Terms : T/T

Supply Ability : 20SET/PER MONTH

Delivery Time : 45days

Packaging Details : normal packing

color : sky blue

pay off bobbin : Diameter 500/630/800/1000mm

Material : PVC,PP,PE,SR-PVC,PU,Nylon jacket

Capstan reduction ratio : 15%

Annealing type : DC 3phase

Injection machine : 45horizonal injection machine

Contact Now

DC 3 phase Annealing Type PVC Extrusion Machine Extrude BV Building Wire

FC-90 serial insulating production extruder line

Usage:

It is applied to drawing and extrude BV building wire, LAN cable and local cable.

Merits:

Integrated design of annealing and pre-heating, equipped with automatic tension adjusting system, and ensure the wire diameter uniformity of the copper wire elongation and conductor.
The plastic extruder main machine using non-adjustable crosshead, which can ensure concentricity of core wire over 95%.
Device structure: drawing machine, annealing machine, extruder, take-up machine, tester and other equipments.

Usage	Low smoking non-halogen flameresistant environmental building wire
Outlet copper wire diameter	Φ6.0-25mm
screw diameter	φ90
screw ratio	25:1
Max speed	250
Max die number	17
Mechanical reduction ratio	20%
Capstan reduction ratio	15%
Drawing machine power	45KW
Annealing type	DC 3phase
Accumulator	Vertical accumulator
Extruder main machine	FC-90+45
Injection machine	45horizonal injection machine
Extruder main machine power	22KW
printer	Double printer
Cooling tank	Double layers
Capstan	510double wheels
Accumulator	horizonal
Take up	Shaft or coiling machine

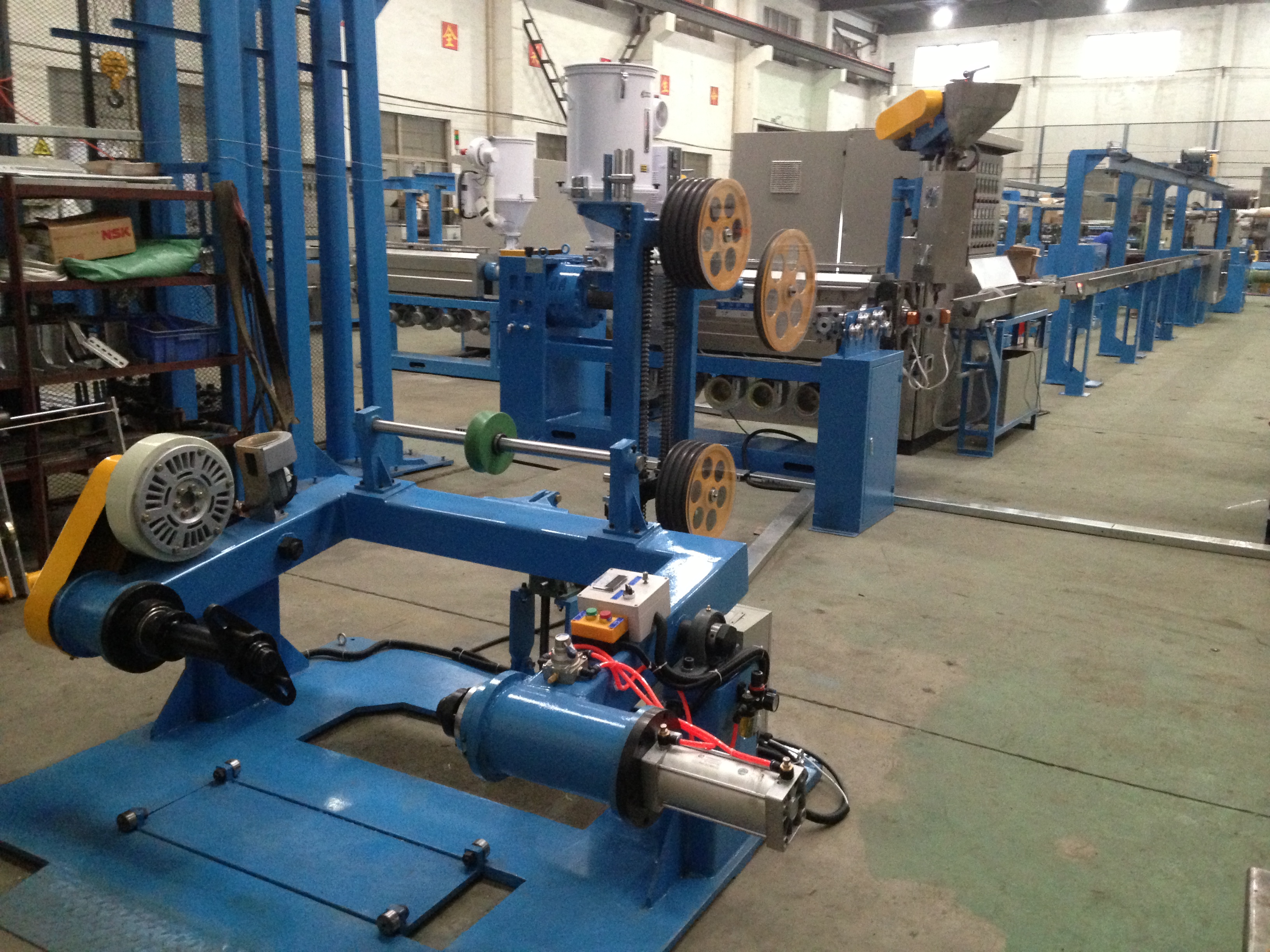

DC 3 phase Annealing Type PVC Extrusion Machine Extrude BV Building Wire
